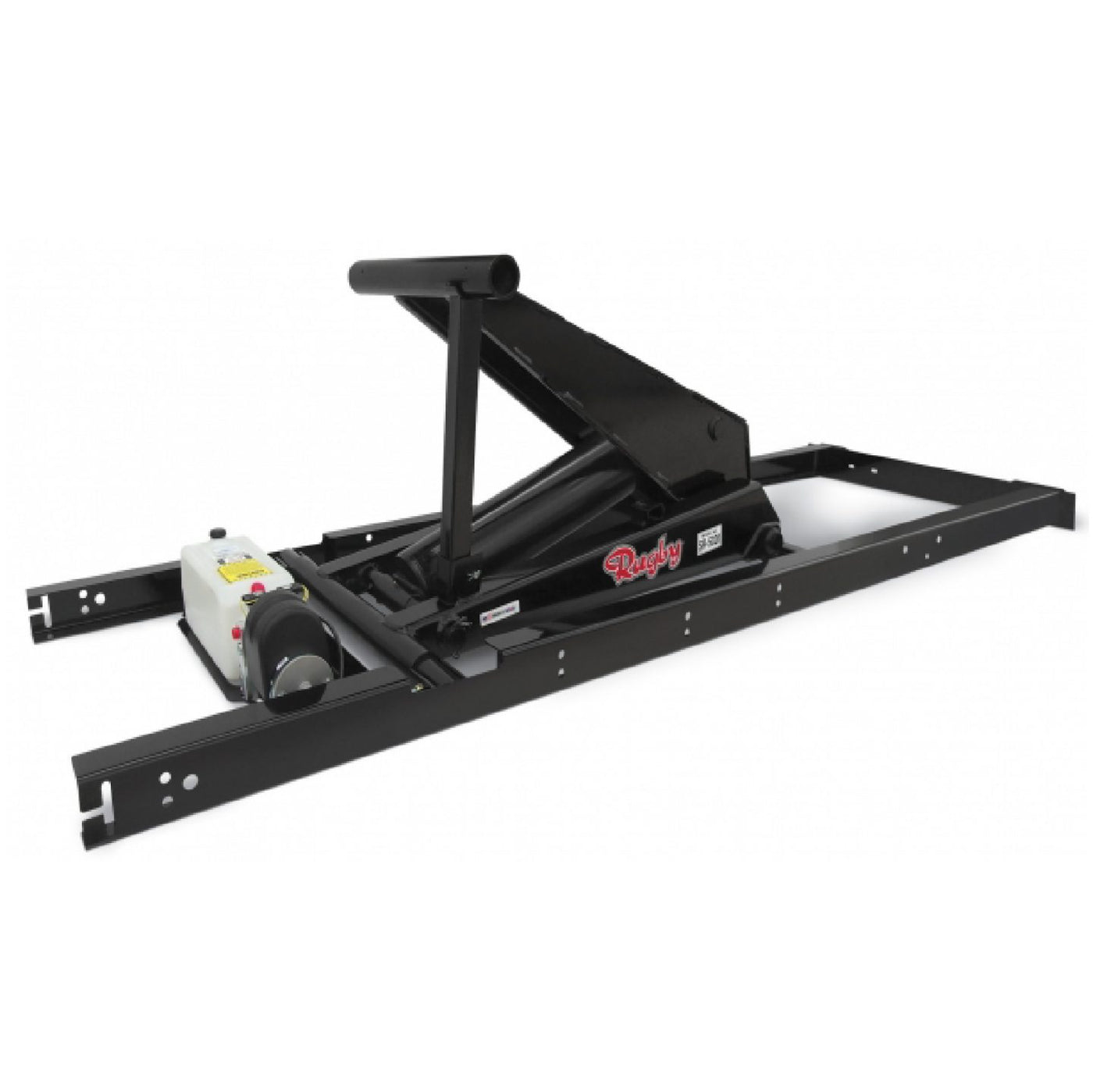

The Rugby SR-4020B Electric Double Acting Hoist Kit is built for heavy-duty reliability with a single-cylinder scissors hoist design that delivers powerful and stable lifting for dump bodies ranging from 10’ to 14’. Outfitted with a 5.5” bore cylinder and a powered lift/powered down hydraulic system, this hoist ensures safe, controlled operation in demanding jobsite environments.
The full kit includes a 9’ subframe , installation carton , and a double acting power unit with gear pump, reservoir, and electric valve kit. With an NTEA Class 40 rating and approximately 650 lbs weight, the SR-4020B provides a dependable solution for contractors, municipalities, and fleet operators who demand durability, smooth performance, and ease of installation.
Key Features:
-
Electric Double Acting hoist – powered lift and powered lower.
-
5.5" bore single-cylinder scissors design.
-
Compatible with 10’–14’ body lengths.
-
9’ subframe standard (PN 2595805); optional 11’ subframe (PN 2595809) or 24” extension kit (PN 1851733).
-
Includes installation carton (PN 2186199) and power unit (PN 2580132).
-
Approximate kit weight: 650 lbs.
-
NTEA Class 40 performance rating.
