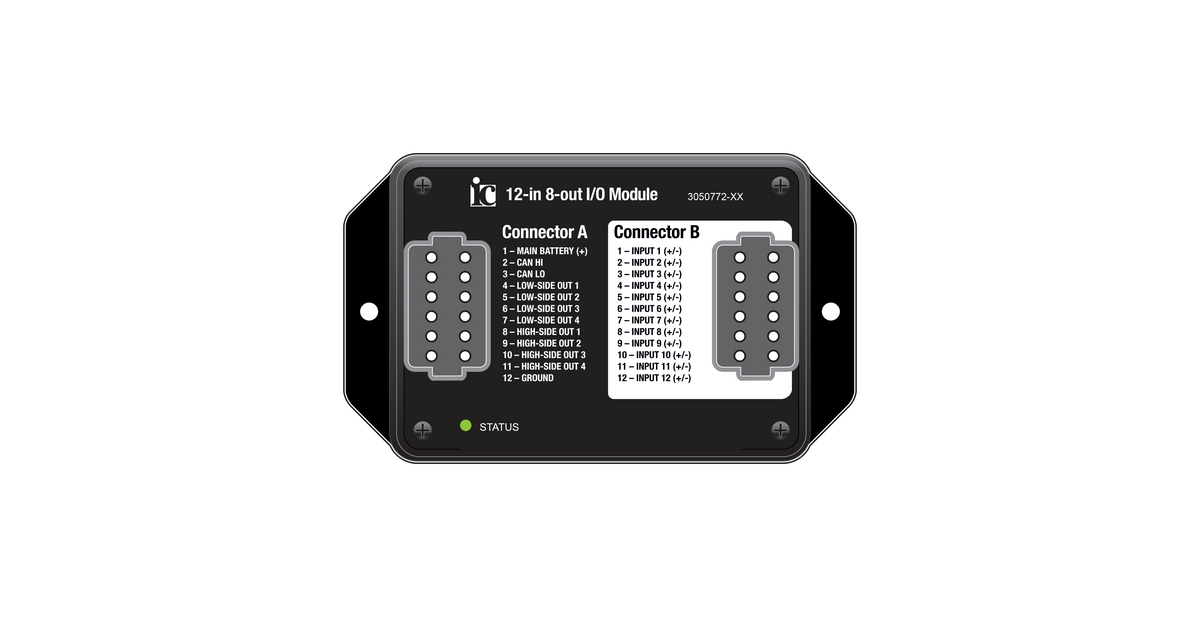

The Innovative Controls 3050772 12-In/8-Out I/O Module is designed to monitor and control vehicle subsystems through a standard or custom J1939 CAN network. The module provides 12 individually configurable inputs and 8 outputs, making it ideal for fire apparatus, emergency vehicles, and other multiplexed vehicle electrical systems.
Inputs can be configured for low-side, high-side, or tri-state operation, while outputs can be controlled through CAN messages or linked directly to module input states. The fully potted, IP67-rated enclosure provides protection against dust and water for demanding vehicle environments.

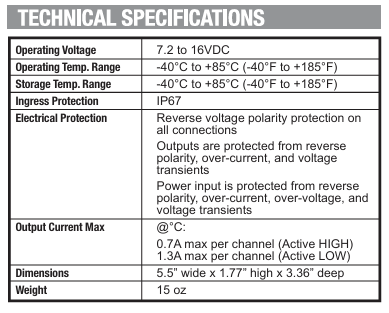

Features:
- 12 customizable inputs
- 8 outputs: 4 low-side and 4 high-side
- J1939 CAN network communication
- Low-side outputs: 1.3A max per channel
- High-side outputs: 0.7A max per channel
- Operating voltage: 7.2–16 VDC
- IP67 dust and water protection
- Operating temperature: -40°F to +185°F
- Deutsch DTF15-12PA and DTF15-12PB connectors
- Reverse polarity, over-current, over-voltage, and transient protection

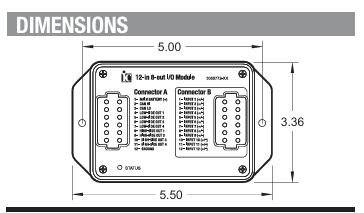

- Dimensions: 5.5" W × 1.77" H × 3.36" D
- Weight: 15 oz
